Product Description

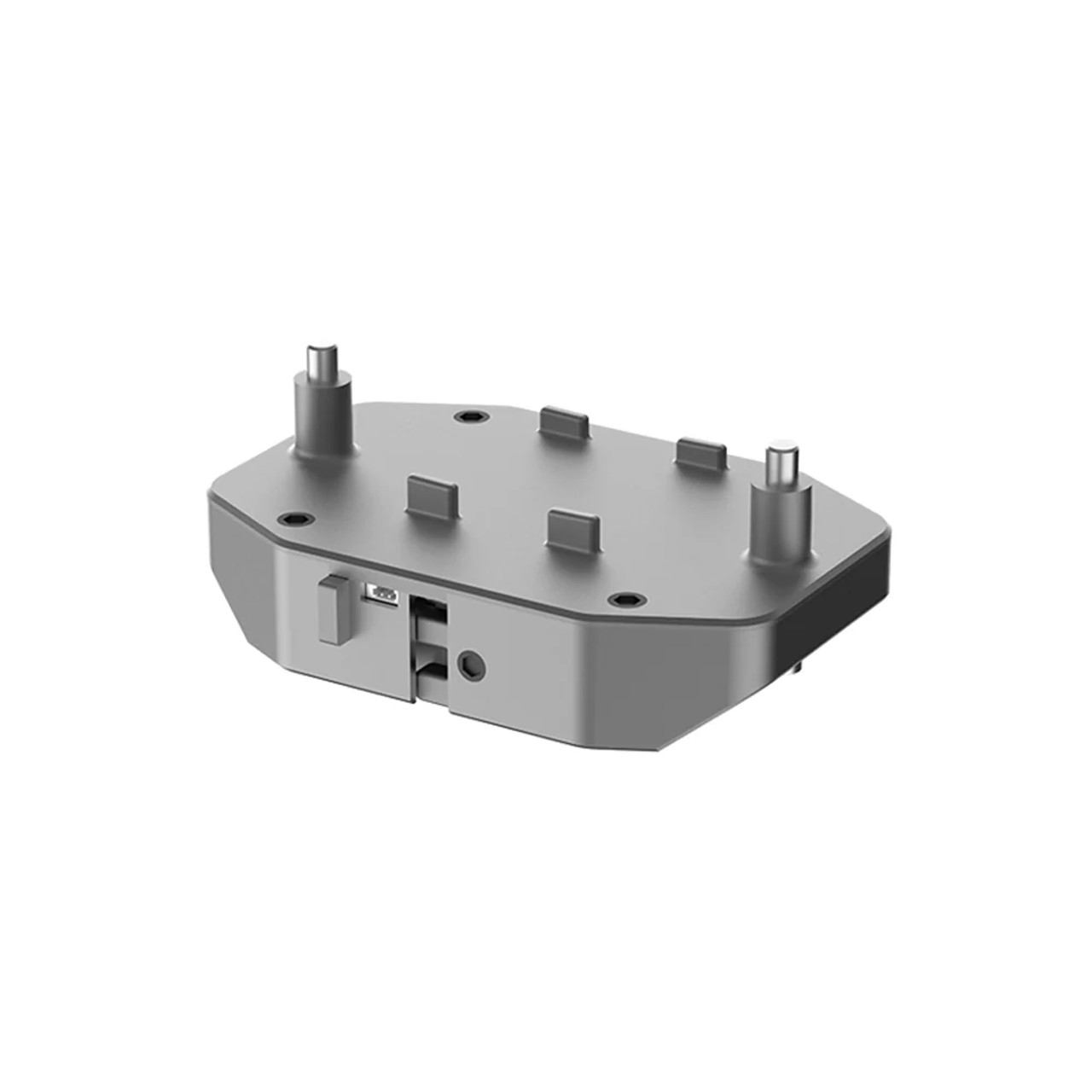

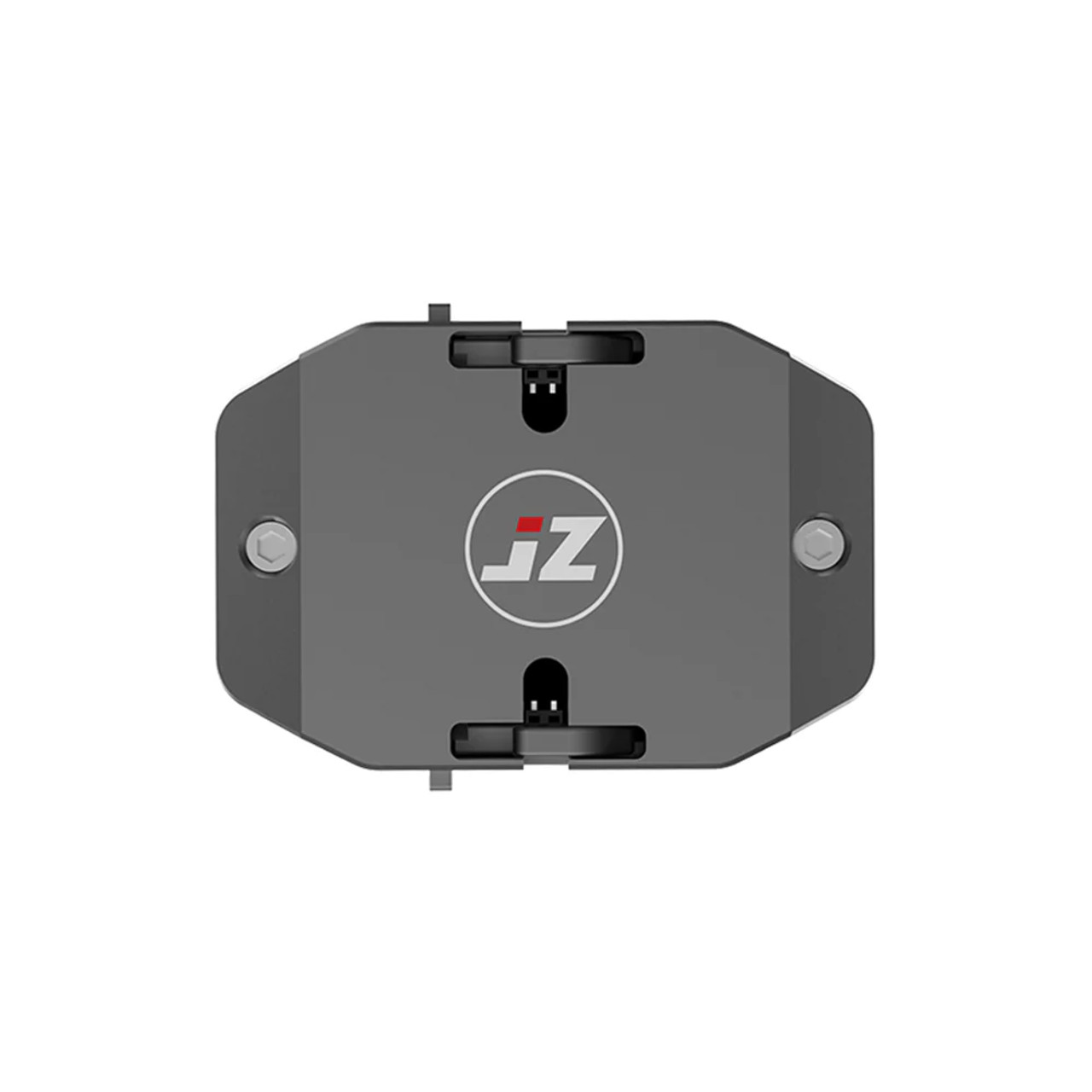

JZ AD2 Drop System for DJI Matrice 4 Series
The JZ AD2 Two Airdrops adopts an all-alloy structure design, weighs only 43 grams, uses E-Port lite interface for power supply and communication, can be used with a megaphone and searchlight at the same time, supports DJI Pilot 2 APP and remote control button control, supports external gimbal laser guidance module. It is directly compatible with Matrice M4E and M4T, and can be adapted to Matrice M3D and Matrice M4D series through the bracket through the bracket.
- Can be connected to an external PTZ laser-assisted guidance module, compatible with M4T/M4TD
- Adopting all-alloy structural design, the body is strong and durable, and the whole machine weighs only 43 grams
- Independent placement controlled by DJI Pilot 2, no restrictions on order, just click and place
- Two mounting positions, DJI Pilot 2 displays the mounting status of each position in real time
Technical Parameters
-
Electrical interface
-
DJI SDK
-
Size
-
42 x 60 x 21 mm
-
Maximum power consumption
-
10W
-
Weight
-
43g
-
Compatible Models
-
Matrice 4E \ 4T
Matrice 3D \ 3TD (with bracket)
Matrice 4D \ 4TD (with bracket)
-
Number of mounts
-
2 paragraphs
-
Individual mounting weight
-
Maximum 1kg, the actual aircraft load shall prevail
-
Gross vehicle weight
-
Maximum 2kg, actual weight is subject to aircraft load
-
Delivery sequence
-
not limited to
-
Mounting order
-
not limited to
-
Drop-in function
-
Single-point drop, one-key full drop
-
Operational control
-
DJI Pilot 2
-
Protection level
-
IP44
-
Installation
-
screw quick release
-
Product features
-
PSDK control
Mount detection
Single point delivery
One click full delivery
Power free mounting
E
-
Operating temperature
-
-10 °C to 50 °C
-
Storage temperature
-
-20 ℃ to 60 ℃
