Product Description
Autel EVO Lite 640T (Thermal) Enterprise 7.9" RC Premium Combo
Autel EVO Lite Enterprise Series
The EVO Lite Enterprise Series, by Autel Robotics, offers multiple advantages such as a lightweight and portable design, rapid deployment, and simple control for industrial applications. The AI target recognition feature enables the aircraft to easily identify and map various target objects automatically. The three-way binocular vision obstacle avoidance provides a safe flying experience. The EVO Lite 640T Enterprise features a dual gimbal system, with a visible-light camera providing clear and detailed images, while the thermal-imaging camera aids in decision-making during operations. The EVO Lite 6K Enterprise is equipped with a 1-inch CMOS visible-light camera, offering outstanding sensitivity for excellent image quality. Paired with the Autel Enterprise professional flight software, it offers easy operation, user-friendly interaction, flexible single-person deployment, and efficient application in scenarios such as public safety and emergency rescue.
Lightweight and Portable

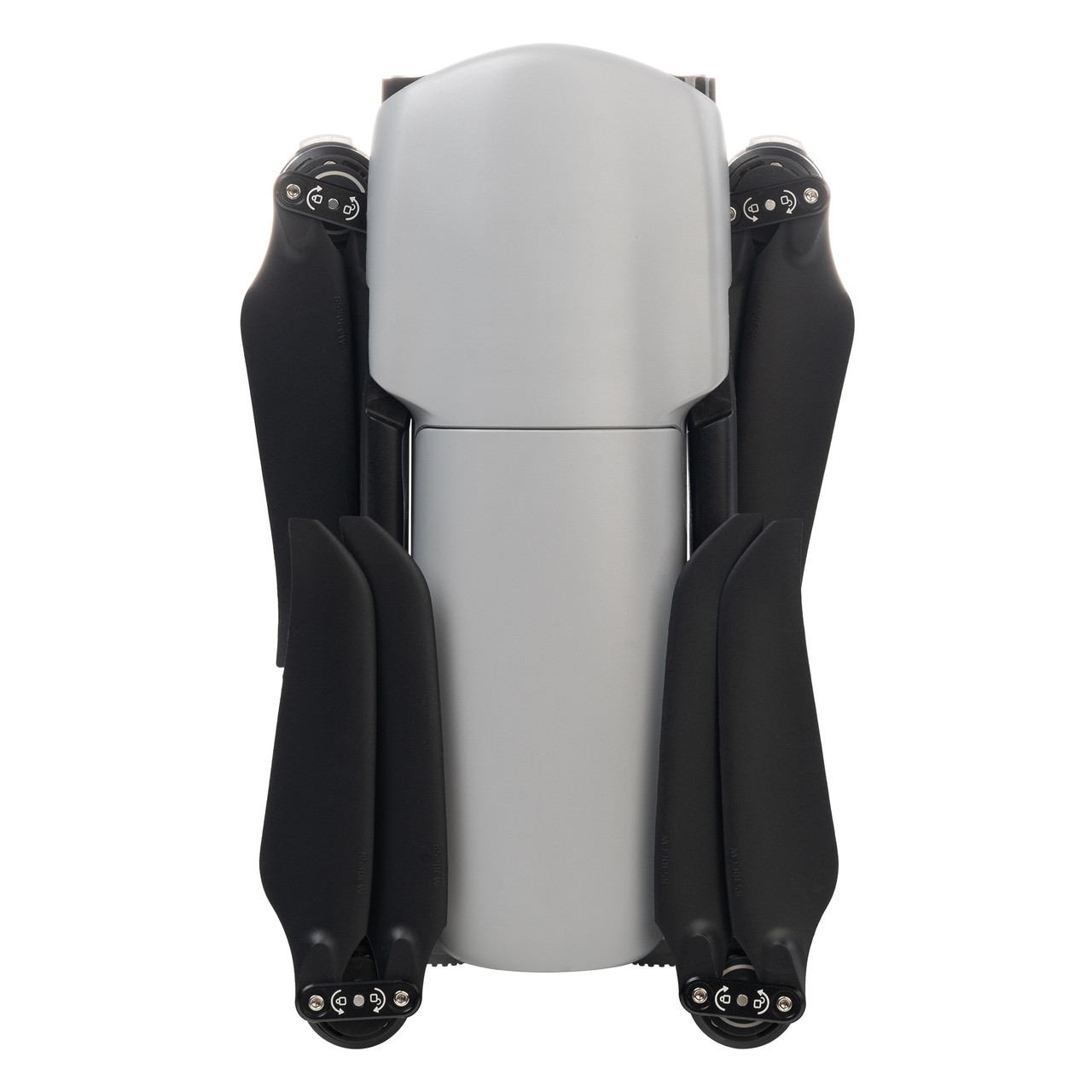

The EVO Lite Enterprise Series aircraft weigh only 866 grams and have folded dimensions of just 210*123*95mm, making them easy to carry in a backpack. With a simple operation, they are ideal for efficient execution of missions by a single operator.
Autel Enterprise App
Autel Enterprise is a professional flight mission software designed for industry applications by Autel Robotics. It features an optimized interaction design for simple and efficient operation, an editable toolbar design for intuitive use, and integrates intelligent and professional functions to fully utilize the industry value of the EVO Lite Enterprise Series aircraft.
AI Target Recognition and Positioning
Utilizing wide-angle or infrared lenses combined with intelligent AI algorithms and a self-learning system, the aircraft can automatically recognize and locate, including people, cars, and boats, projecting their positions on the map.
EVO Lite 640T Enterprise
Equipped with a dual gimbal, the wide-angle visible-light camera offers a broad field of view with vivid high-definition images, while the infrared thermal-imaging camera integrates high-resolution thermal-imaging algorithms, providing clear and detailed thermal source identification.
High-Definition Video Transmission
Equipped with Autel SkyLink image transmission technology for a dual-signal, dual-reception system, the image transmission anti-interference capability improved, and the transmission distance reaches up to 12 kilometers. It supports 2.4GHz/5.2GHz/5.8GHz adaptive frequency hopping transmission, automatically selecting the best channel based on electromagnetic interference, providing strong anti-interference capability.
- 12 kilometer image transmission distance
- 1080P/30 FPS real-time image transmission quality
- <200 milliseconds Latency
- 2.4GHz/5.2GHz/5.8GHz frequency band transmission
Visual Perception System
The drone is equipped with wide-angle vision sensors at the front, back, and bottom, ensuring reliable flight safety.
SDK Ecosystem
The open Mobile SDK provides efficient, versatile, and easy-to-use control and service interfaces, enhancing development efficiency and enabling the creation of custom solution scenarios.
Flight Performance
Born small but mighty. The outstanding flight performance of the EVO Lite Enterprise Series drones effortlessly tackles various challenges across multiple scenarios, significantly enhancing the efficiency of single-person mission flights.
Autel EVO Lite 640T (Thermal) Enterprise 7.9" RC Premium Combo
- Autel EVO Lite 640T (Thermal) Enterprise Aircraft
- Autel 7.9" Smart Controller
- Autel EVO Lite Enterprise Series Intelligent Flight Battery x3
- Autel EVO Lite Enterprise Series Propeller - 3 Pair (3-CW/3-CCW)
- Autel EVO Lite Enterprise Series AC Charger
- Autel EVO Lite 640T Enterprise Gimbal Cover
- Autel EVO Lite Enterprise Series Hard Case
- USB-C Cable
- Lens Cloth
Specs
Aircraft
|
Weight |
866 g |
|
Maximum takeoff weight |
866 g |
|
Dimensions |
210×123×95mm (folded, propellers included) 433×516×95mm (unfolded, propellers included) |
|
Max. rotation speed |
8000 rpm |
|
Wheelbase |
368 mm |
|
Propeller Dimension |
8.5 inch injection molded propeller. Spec: 8530 |
|
Propeller weight |
7.5 g |
|
Maximum ascent speed |
Slow:3 m/s Smooth:3 m/s Standard: 5 m/s Ludicrous: 6 m/s |
|
Maximum descent speed |
Slow:3 m/s Smooth:2 m/s Standard: 3 m/s Ludicrous: 4 m/s |
|
Maximum horizontal flight speed (no wind near sea level) |
Slow :3 m/s Smooth:5 m/s Standard: 10 m/s Ludicrous: 18 m/s |
|
Maximum Service Ceiling Above Sea Level |
3000 meters |
|
Maximum flight altitude |
Chinese Mainland or EU: no more than 120 meters US: no more than 400 feet Note: In the flight application UAV, it can be set from 0 to 800 meters. To set beyond height required by law, you need to obtain authorization from authority. |
|
Maximum flight time (no wind) |
40 minutes Note: Tested in lab with nearly no wind when aircraft flies at speed of 10 m/s and only for reference. |
|
Maximum flight mileage |
24 km |
|
Maximum hover time (no wind) |
37 minutes Note: Tested in lab with nearly no wind when aircraft hovers and only for reference. |
|
Maximum wind resistance level |
Fresh breeze |
|
Maximum tilt angle |
Slow: 15° Smooth: 30° Standard: 30° Ludicrous: 33° |
|
Maximum rotation angular speed |
Smooth: 60°/s Standard: 120°/s Ludicrous: 200°/s |
|
Working temperature |
-10℃~40℃ |
|
Battery hot replacement |
Not support |
|
Internal storage |
Onboard storage: 4GB (support microSD card of up to 256GB) |
|
GNSS |
GPS/BDS/GLONASS |
|
Hover accuracy |
Vertically: ±0.1 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally) Horizontally: ±0.15 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally) |
Visual Perception System
|
Sensing range |
Forward: 0.2~23 meters Effective obstacle avoidance speed: ＜10m/s Backward: 0.2~30 meters Effective obstacle avoidance speed: ＜10m/s Downward: 0.2~20 meters |
|
FOV |
Forward: 75° horizontally, 87° vertically Backward: 35° horizontally, 45° vertically Downward: 99° horizontally, 83° vertically |
|
Effective use of the environment |
Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment) Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) |
Image Transmission
|
Operating Frequency |
2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz** 5.2G: 5.15 - 5.25 GHz*** 5.8G: 5.725 - 5.829 GHz*, 5.725 - 5.850GHz** *Only applies to SRRC regions **Only applies to FCC, ISED, CE, UKCA and RCM regions ***Only applies to FCC regions Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws and regulations for details. |
|
Maximum signal effective distance (No interference, no obstruction) |
FCC: 12 kilometers CE: 6 kilometers |
|
Effective transmitter power ( EIRP) |
2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC) 5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE) |
EVO Lite 640T Enterprise - Visible Light Camera
|
Image sensor |
1/2 inch CMOS, 48 million pixels |
|
Lens |
Field of view: 83.4° focal length: 24 mm Aperture: f/2.8 Focus distance: 0.5 meter ~ ∞ Focus: FF (Fixed Focus) |
|
ISO range |
Auto Mode: ISO100 ~ ISO6400 Manual Mode: Video: ISO100 ~ ISO6400 Photo: ISO100 ~ ISO6400 Night scene mode: ISO100 ~ ISO32000 |
|
Shutter speed |
Photo mode: 1/8000 ~ 0.5 seconds Others: 1/8000 ~ 1/30 seconds |
|
Defog mode |
Support |
|
Zoom |
1 - 16x digital zoom |
|
Maximum photo size |
3840×2160 P30 1920×1080 P30 |
|
Photo format |
JPG |
|
Photo shooting mode |
Single shooting |
|
Video resolution |
3840×2160 P30 1920×1080 P30 |
|
Video format |
MP4/MOV |
|
Video coding format |
H.265/H.264 |
|
Video maximum bit rate |
100Mbps |
|
Support file system |
FAT32/exFAT |
EVO Lite 640T Enterprise - Thermal Imaging Camera
|
Image Sensor |
Uncooled VOx Microbolometer |
|
Lens |
FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focusing distance: 2.2 m ~ ∞ |
|
Sensitivity |
≤50mK@f/1.0, 25°C |
|
Pixel Pitch |
12um |
|
Wavelength |
8 - 14um |
|
Radiometric Measurement Method |
Center measurement/Pot measurement/Rectangular measurement |
|
Radiometric Temperature Range |
-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode) |
|
Radiometric Measurement Accuracy |
±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C |
|
Accurate Temperature Measurement Distance |
1 ~ 25 m |
|
Digital Zoom |
16x digital zoom |
|
Temperature Alert |
High and low temperature alarm thresholds, Reporting coordinates and temperature values |
|
Palette |
White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot |
|
Photo Size |
640×512 |
|
Photo Format |
JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools) |
|
Photo Taking Mode |
Auto |
|
Video Resolution |
640×512@30FPS |
|
Video Format |
MP4 |
EVO Lite 640T Enterprise Gimbal
|
Mechanical scope |
Pitch: -135°~45° Roll: -50°~50° Yaw: -90°~90° |
|
Controllable rotation range |
Pitch: -90°~30° |
|
Stable system |
Three-axis stabilization |
|
Maximum control speed (pitch) |
100°/s |
|
Angualr vibration range |
±0.003° |
